Single Phase

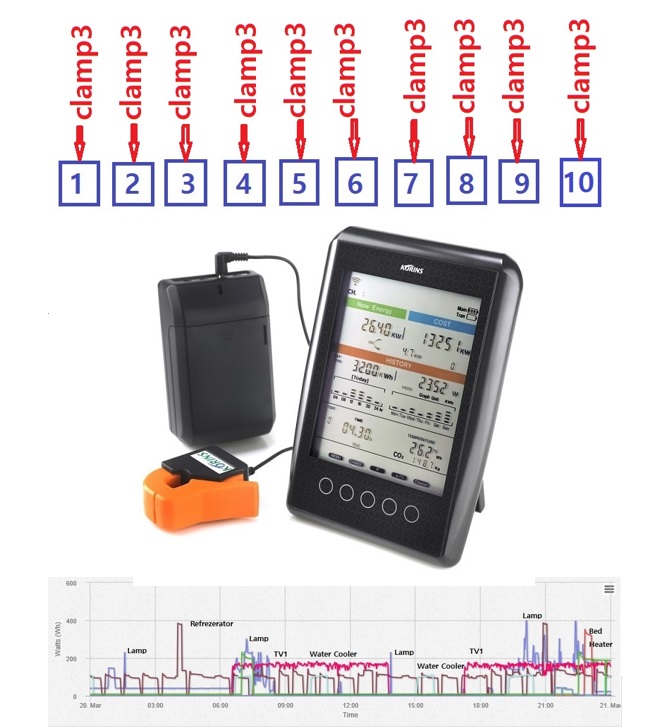

3-Phase, 10 channel data logger Model SEM3500 set (3상 10찬넬 무선 전력 측정기)

송수신기 통신 거리: 실내 최대 50meter (장애물이 없는 직선거리: 최대 1km) LAN 선으로 인터넷 연결 가능

측정 항목: 3상 합산 전류 및 전력(W) , 2년간 사용 전력량 (kWh) 사용자 설정 항목: 전압(V) 및 역율(P.F.)

PC 소프트웨어 제공: 그래프(일간, 월간), 10찬넬 DATA

인터넷 서비스 : 그래프 (일간/주간/월간/년간) , 10channel data , Realtime 서비스


관련 제품 SEM3000 (SEM3110) SEM3300 SEM3400 SEM3500 SEM3900

SEM3000 (SEM3110) 가격표



web cloud service site: http://mywatt.org pc software download site for sem3000 receiver: http://mywatt.biz/m App service: Android "mywatt30" Web cloud service sample: http://mywatt.co.kr/cloud pc software sample: http://mywatt.co.kr/soft WIFI pairing channel: 10 channels
Model	Specification	Scope of Supply	Price	Photo

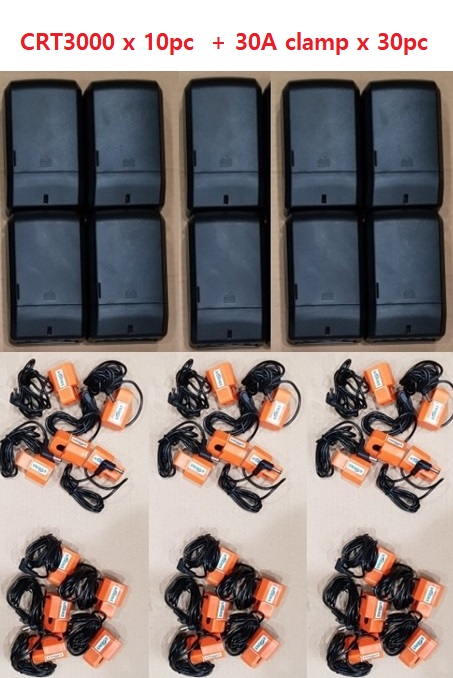

SEM3500-30A	current measurement: 3% accuracy power factor: adjustable by manual voltage: adjustable by manual daily/weekly/monthly energy & cost display web cloud service with 1 minute interval: included pc software: included	무선송신기: 10sets 무선수신기: 1set 30A 전류clamp: 30개 --------------------CRT3000 wireless transmitter with power adapter: 10sets 30A clamp: 30pcs SEM3100 wireless receiver & adapter: 1set pc cable: 1pc pc software: included 10ch. web cloud service: 2 years free
SEM3500-75A	current measurement: 3% accuracy power factor: adjustable by manual voltage: adjustable by manual daily/weekly/monthly energy & cost display web cloud service with 1 minute interval: included pc software: included	무선송신기: 10sets 무선수신기: 1set 75A 전류clamp: 30개 --------------------CRT3000 wireless transmitter with power adapter: 10sets 75A clamp: 30pcs SEM3100 wireless receiver & adapter: 1set pc cable: 1pc pc software: included 10ch. web cloud service: 2 years free

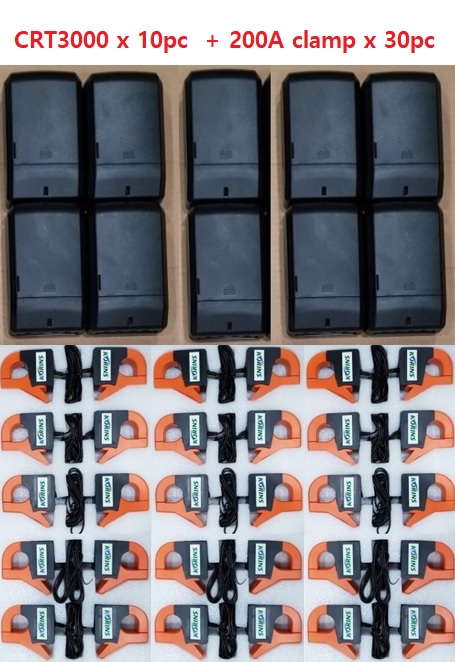

SEM3500-200A	current measurement: 3% accuracy power factor: adjustable by manual voltage: adjustable by manual daily/weekly/monthly energy & cost display web cloud service with 1 minute interval: included pc software: included	무선송신기: 10sets 무선수신기: 1set 200A 전류clamp: 30개 --------------------CRT3001 wireless transmitter with power adapter: 10sets 200A clamp: 30pcs SEM3100 wireless receiver & adapter: 1set pc cable: 1pc pc software: included 10ch. web cloud service: 2 years free
